Belt Box Feeder

Belt Box Feeder

Belt Box Feeder

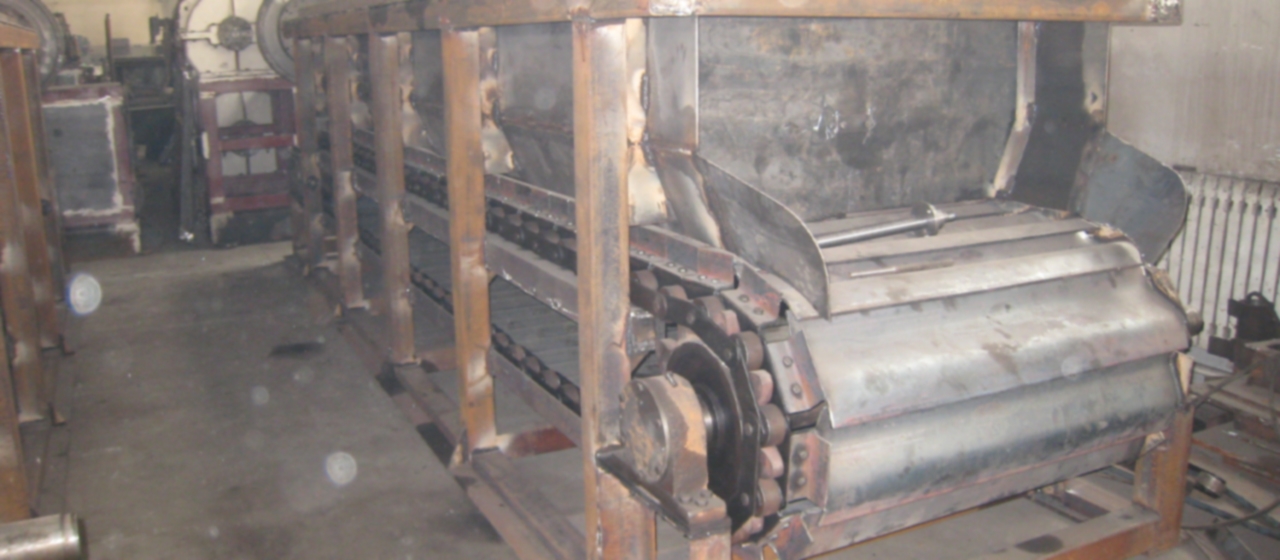

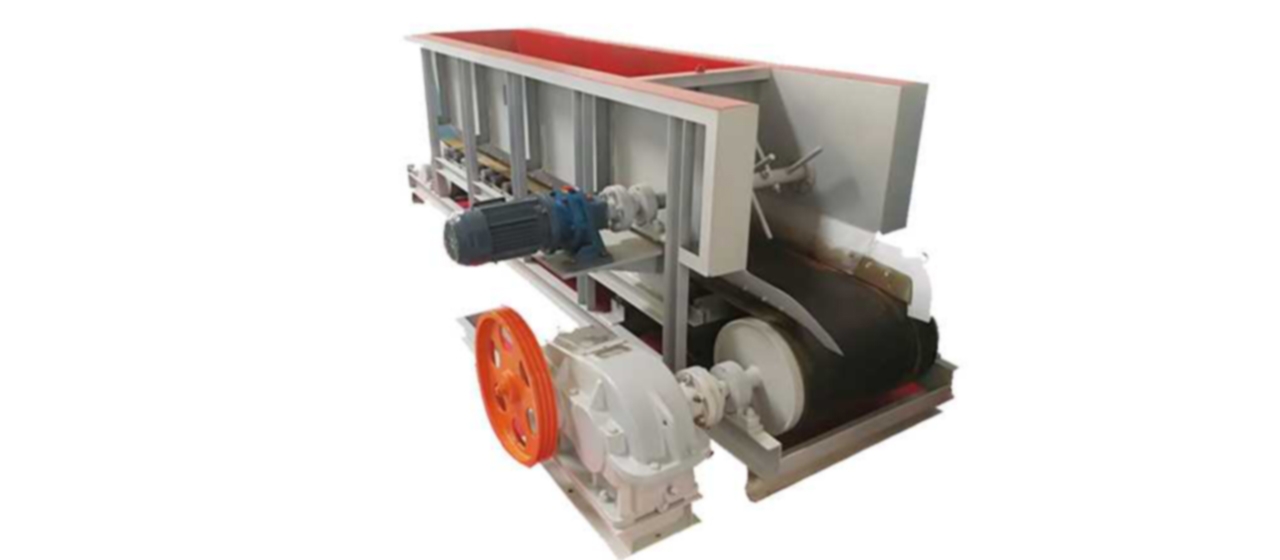

Product Introduction of Belt Box Feeder:

Box Feeder is one of feeder’s equipments which balances and rations the materials that you feed in. By adjusting the height of flash board and the speed of conveyor belt, it will control the quantity of feed-in raw materials, balance pug and internal combustion material proportionally, and crush the large soft mud.

Advantages:

Simple structure,Low cost,delivering a high (18%-24%) moisture content of raw materials,the most widely used box feeder

Technical Parameters:

Type Capacity ( m³/h) Power(KW) Size Moisture Raw materialInput size(mm)
GD50X250 10~25 4 2650X1600X1260 ≤18%~24% <250
GD60X300 20~30 5.5 3670X1890X1470 ≤18%~24% <250
GD80X400 20~50 7.5 4670X2050X1470 ≤18%~24% <250
GD100X500 45~80 6~7.5 5560X2250X1470 ≤18%~24% <250
