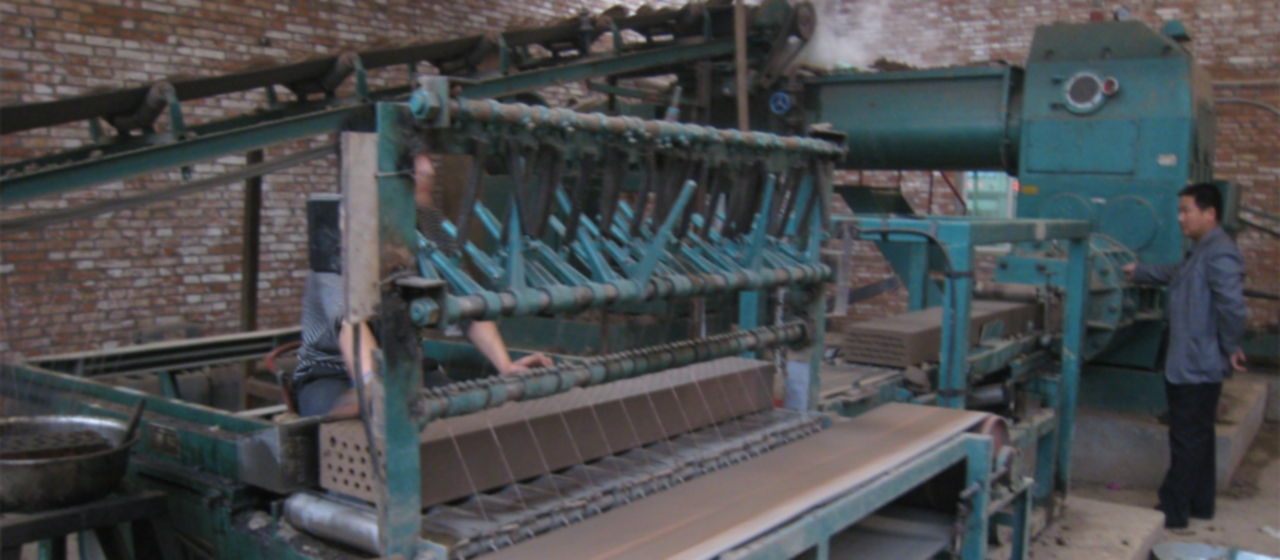

JKY55/50-35 clay brick making machine

JKY55/50-35 clay brick making machine

JKY55/50-35 clay brick making machine

Operation and Precautions of JKY55/50-35 clay brick making machine:
1. This clay brick making machine opening, core head, core rod should be replaced and adjusted in time. While they are abraded to some extent, the sizes of tile will be affected in clay brick production line.
2. The wearing parts should be repaired and replaced when they are abraded after a period of use, or the product quality and output will decline, such as reamers, stirring blades and mud pressing board.
3. When you want to stop the machine, stop feeding first, and then squeeze out the clay inside the machine, in order to avoid the overload at next startup. Don’t reboot the machine if the air pressure is lower than 0.5MMpa. The friction plate is easily burnt if the air pressure is not enough in clay brick production line.
4. The machine and all the bolts should be stopped and checked after six to eight hours’ work for the first time to make sure if there is looseness. If yes, fasten them in time. If the machine is stopped for more than one day, all the clay material should be squeezed and cleaned out, trying to avoid the damage by the dry clay.

Maintenance.

JKY50/50-35 clay brick making machine should be in good water lubrication condition so the machine is enabled to obtain the maximum efficiency and prolong the service life.
Spindle speed reducer is lubricated by an oil pump filled with N150 (GB/T3141) lubricating oil. The better refueling position is between the two scales of oil dipstick. The other parts are lubricated by extreme pressure lithium-based grease (GB7324-94). The filled lubricating oil has to be replaced after 300 to 600 hours at the very start, and then it can be replaced after 1500 to 5000 hours. The lubricating grease has to be filled regularly.
