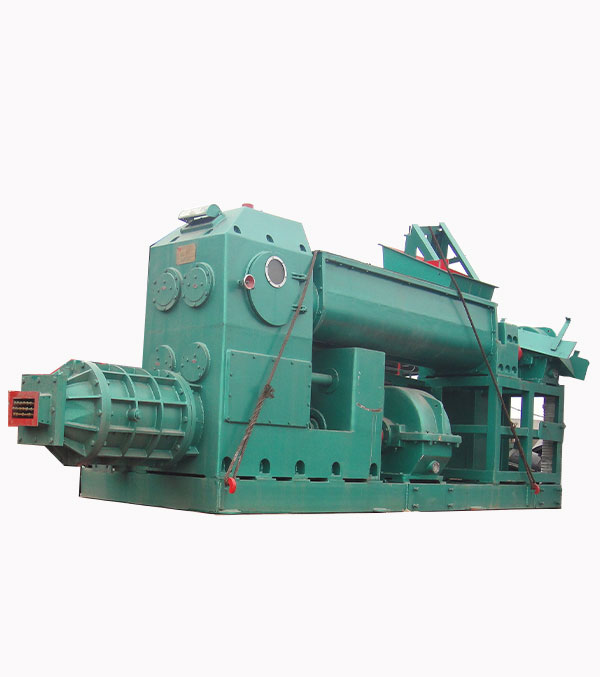

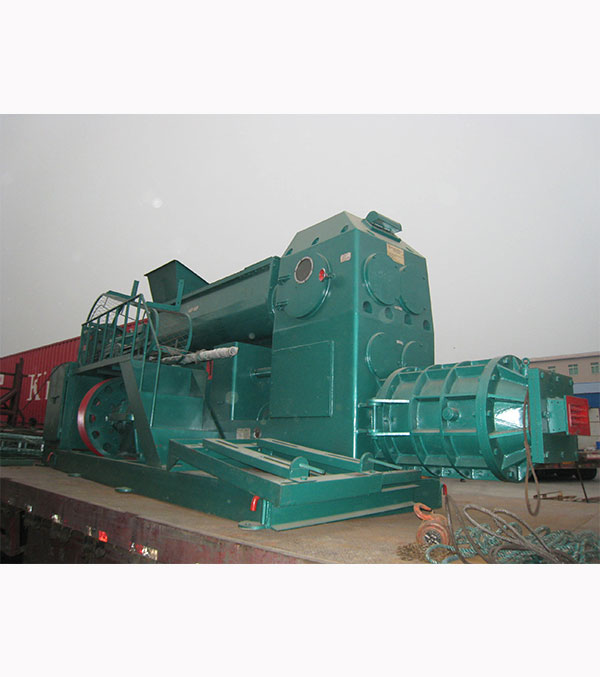

JKR35 vacuum extruder brick making machine

Product Introduction:1.higher output. Good choice for small project;2.The raw material for making bricks can be clay,fly ash,mud,etc3.High vacuum and middle high pressure extrusion,can make  solid bricks and hollow bricks with small holes.4.The size of solid brick and the holes of hollow bricks can be changed according to your needs.5.This model is hot sale in Africa,Central Asia,Bangladesh, Egypt, Saudi Arabia, Algeria ,etc.

JKR vacuum extruder mud brick making machineJKR vacuum extruder mud brick making machineJKR vacuum extruder mud brick making machineJKR40 vacuum extruder brick making machineJKR35 vacuum extruder brick making machine

Product Introduction:

  1. Low output. Good choice for small project;
  2. The raw material for making bricks can be clay,fly ash,mud,etc
  3. High vacuum and middle high pressure extrusion,can make  solid bricks and hollow bricks with small holes.
  4. The size of solid brick and the holes of hollow bricks can be changed according to your needs.
  5. This model is hot sale in Africa,Central Asia,Bangladesh, Egypt, Saudi Arabia, Algeria ,etc.

Hoffman kiln with small tunnel dryer is also good for this production line.  If you want to learn more information, please contact us.

Product Parts:

JKR35 vacuum extruder brick making machine

Alloy mixer blades

JKR35 vacuum extruder brick making machine

Alloy hollow brick mould

JKR35 vacuum extruder brick making machine

Alloy brick mould

JKR35 vacuum extruder brick making machine

Auger

JKR35 vacuum extruder brick making machine

Thrust bearing

JKR35 vacuum extruder brick making machine

Reducer

Auger adopts high chromium raw materials,the auger front part can produce 25million bricks,the auger back part can produce 45 million bricks one time. High load capacity to admit any pressure from soft to stiff extrusion condition. Reducers with parallel shafts,case hardened and ground helical gears to ensure secure,progressive transmission and quiet operation and long durability.
JKR35 vacuum extruder brick making machine
Extruder shaft
JKR35 vacuum extruder brick making machine

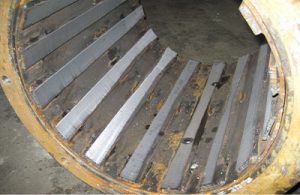

Liner
Different types of augers are available to adapt for varying clay requirements and shaping conditions:

1.Highly wear resistant chromium alloy

2.Steel alloys with chromium or tungsten carbides resurfacing

3.Steel alloy

The whole Magnabloc extruder range offers alternatives for cylindrical,conical or extra-conical auger configurations to better adapt for any product need,type of clay and shaping requirements.

1.Hinged body.Easy opening for maintenance tasks and part replacement.

2.Highly wear resistant chrome alloy liners with a bolt-free system,preventing air leaks and making replacement operations easier.

Making different bricks:

JKR35 vacuum extruder brick making machine



Parameters

Technical parameters

Model Capacity Up to
(t/h)
Auger diameter
(mm)
Extruding pressure
(MPA)
Production Line Power ( KW) Molding moisture content
JKR35 20.5 350 2.0 30/55 16~22%
JKR40 25 400 2.5 37/75 16~22%
JKR45 32 450 3.0 45/90 16~22%
