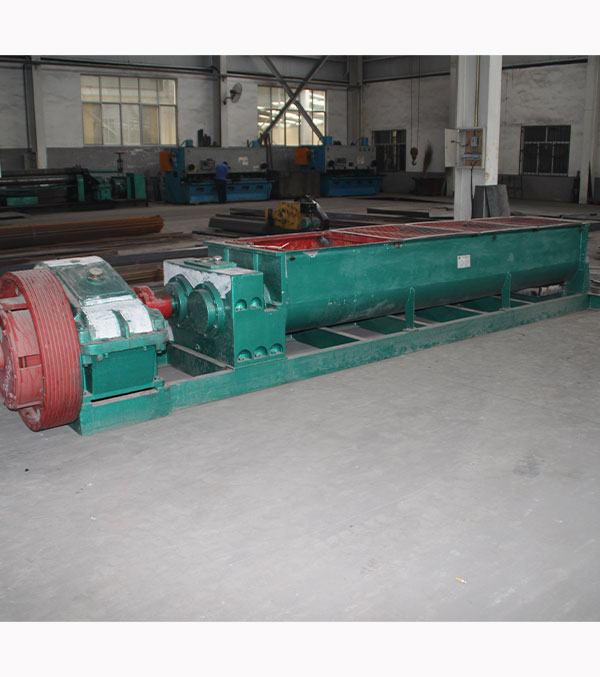

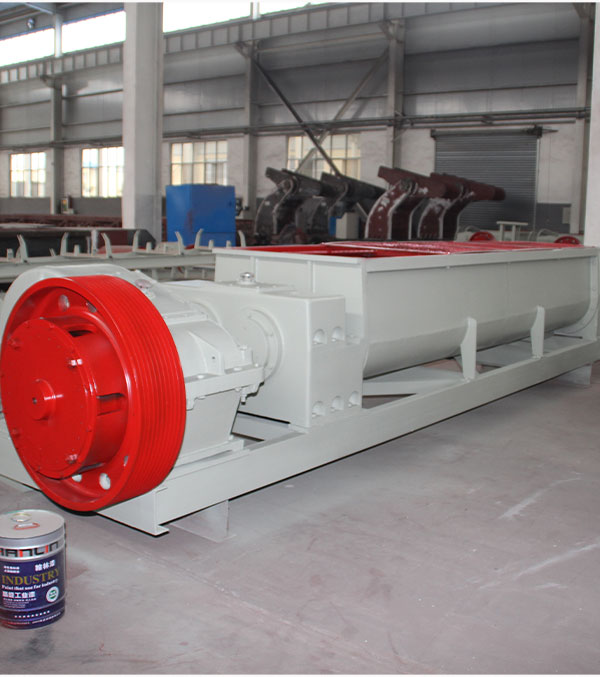

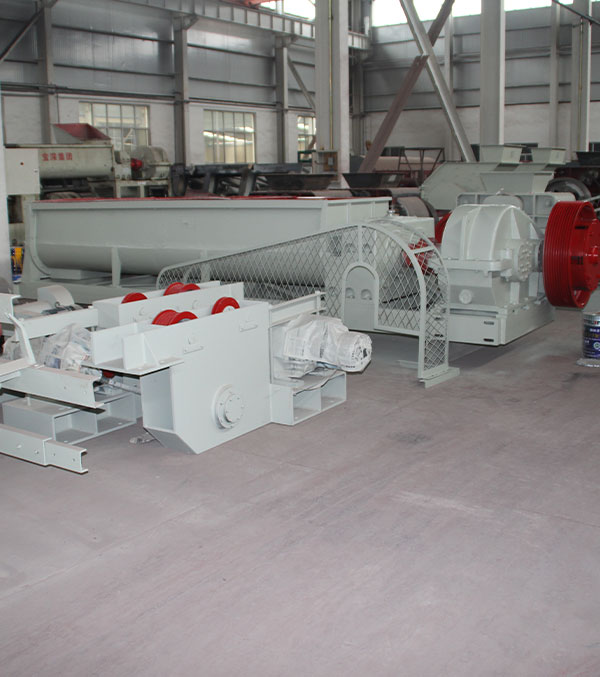

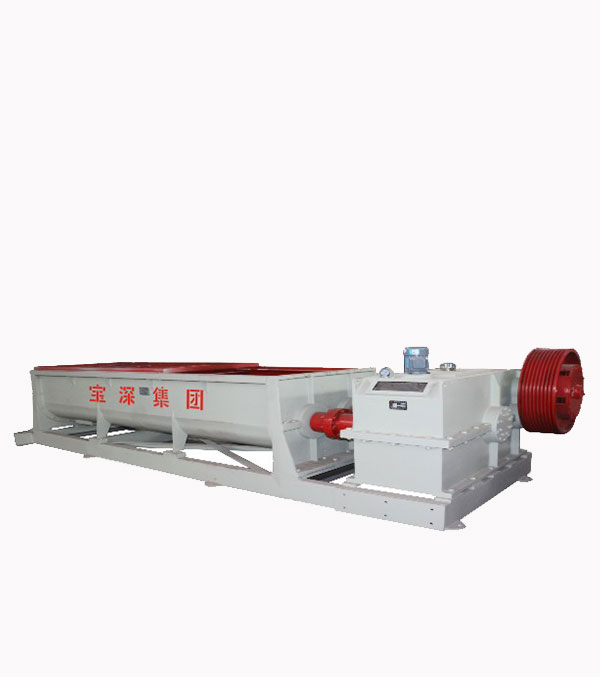

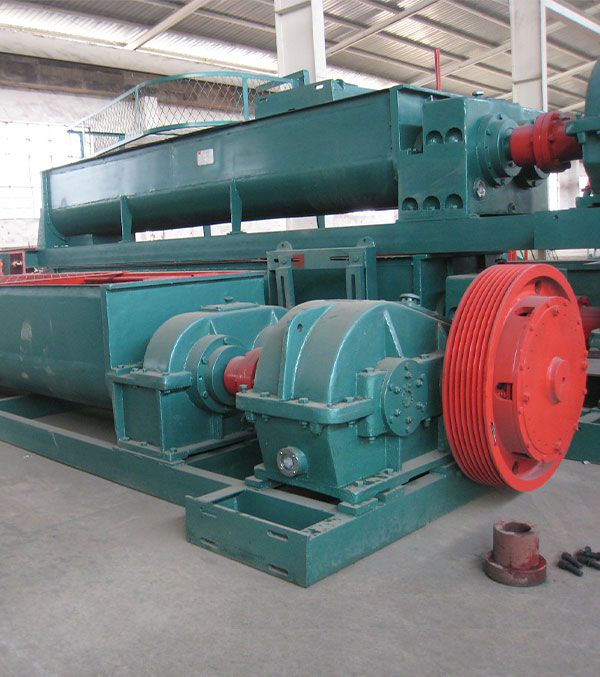

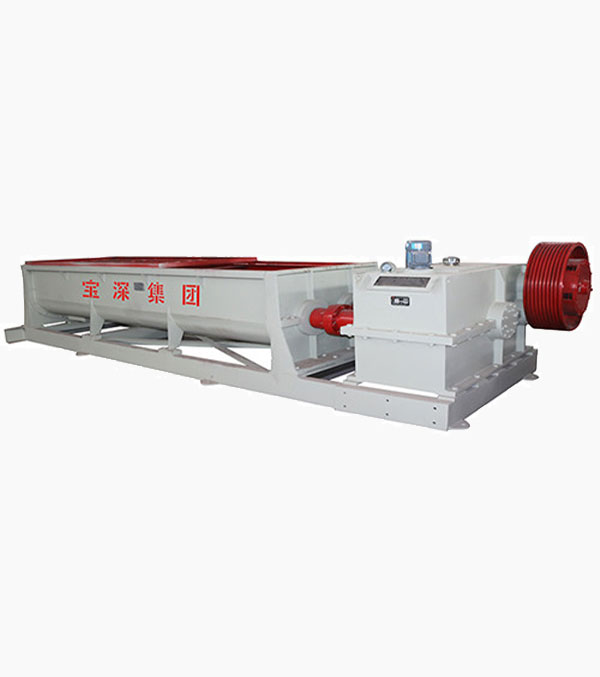

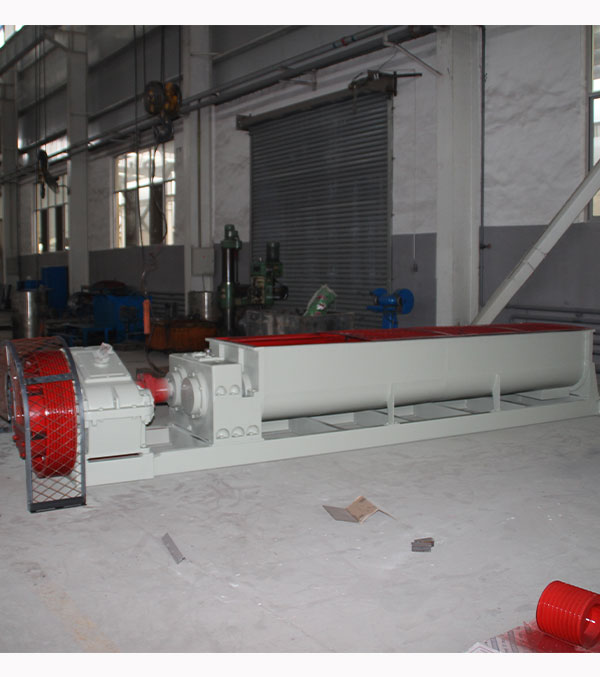

SJ Double shaft mixer

Product Introduction:Auxiliary equipment for transportation machinery on brick and tile production lines;Robust structure, high traction strength and high productivity;

SJ Double shaft mixerSJ Double shaft mixerSJ Double shaft mixerSJ Double shaft mixerSJ Double shaft mixerSJ Double shaft mixer

Product Introduce:

Double shaft mixer is mainly used for continuous mixing, stirring, homogenization and transportation of clay, coal gangue, shale, fly ash and other raw materials. At the same time, water is added to adjust the moisture content of material to enhance the aging effect.


Simple structure,Low cost,delivering a high (8%-20%) moisture content of raw materials,the most widely used box feeder

Product Parts:

SJ Double shaft mixer

Alloy mixer blades

SJ Double shaft mixer

Alloy hollow brick mould

SJ Double shaft mixer

Alloy brick mould

SJ Double shaft mixer


SJ Double shaft mixer

Thrust bearing

SJ Double shaft mixer


Auger adopts high chromium raw materials,the auger front part can produce 25million bricks,the auger back part can produce 45 million bricks one time. High load capacity to admit any pressure from soft to stiff extrusion condition. Reducers with parallel shafts,case hardened and ground helical gears to ensure secure,progressive transmission and quiet operation and long durability.
SJ Double shaft mixer

Extruder shaft

SJ Double shaft mixer


Extruder shaft and gear adopts heat treatment.If with proper maintenance,we can give at least 4 years guarantee for gears and shaft. 1.Hinged body.Easy opening for maintenance tasks and part replacement.

2.Highly wear resistant chrome alloy liners with a bolt-free system,preventing air leaks and making replacement operations easier.

Making different bricks:

SJ Double shaft mixer



Technical Parameters:

Type Capacity( m³/h) Power(kw) Size(mm)
SJ260X32 20-30 30 4500*1390*830
SJ280X32 20-30 37 4670*1390*830
SJ300X32B 20-35 45 5300*1400*830
SJ360X32B 25~40 45 5470*1460*830
SJ360X36B 25~45 55 5700*1520*920
SJ360X40 30~50 55 5720*1520*920
SJ350X50 60~90 90 5920*1620*920
SJ400X50 45-80 90 7500*2130*1450
SJ400X70 80-120 110 7590*2130*1450
