Production Line

The whole set of machinery of clay brick production line

No. Machinery
1 Box feeder
2 Belt conveyor
3

Primary roll crusher

4 Belt conveyor
5 Double shaft mixer
6 Belt conveyor
7 High speed roll crusher
8 Belt conveyor
9 Double shaft mixer
10 Belt conveyor

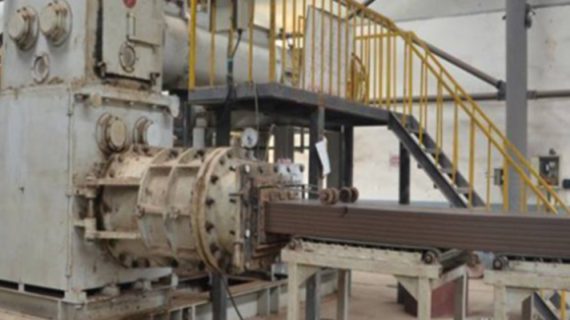

11 Double stage de-airing extruder
12 Vacuum pump
13 Air compressor
14 Auto brick cutting system
15 Belt conveyor (waste brick return to mixer)
16 Control panels
17 V Belt
18 Spare parts
19 dryer
20 kiln



Model No Capacity     (pcs/gh) Power(kw) Extruding pressure(Mpa) Vacuum pressure(Mpa) Dim(mm)
45A 10000-15000 upper55 lower110+7.5*2 ≤4 ≤0.092 7300*2700*2500
45B 10000-15000 upper55 lower110+7.5*2 ≤3 ≤0.092 7300*2700*2500
50A 12000-16000 upper55 lower132+7.5*2 ≤4 ≤0.092 7300*2700*2500
50B 12000-16000 upper55 lower132+7.5*2 ≤3 ≤0.092 7300*2700*2500
70A 15000-21000 upper90 lower250+2*15 ≤4 ≤0.092 7000*2500*2500
70A- Ⅱ 20000-28000 upper90 lower250+2*15 ≤3 ≤0.092 7590*2920*2885
Notes 3.5kg/pcs (L.W.H)
