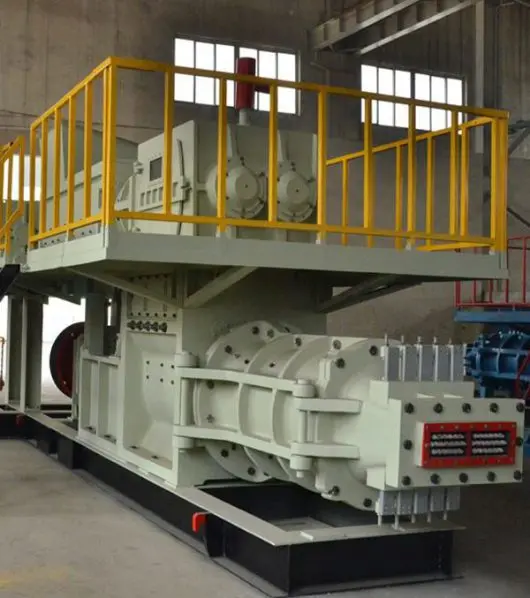

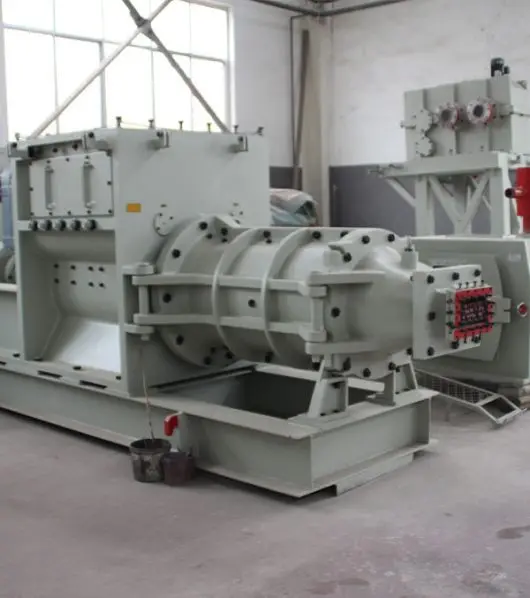

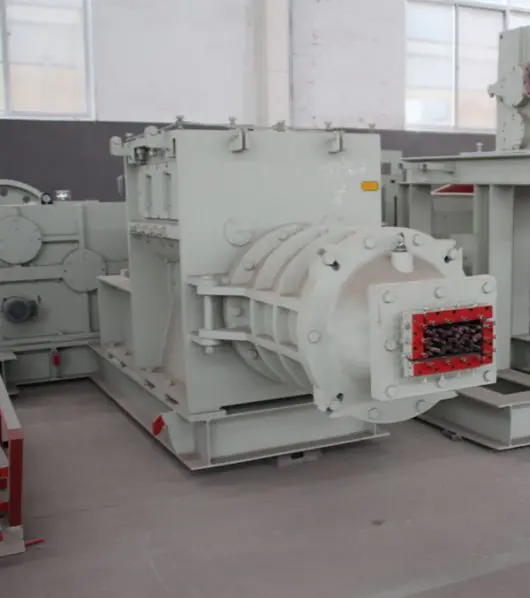

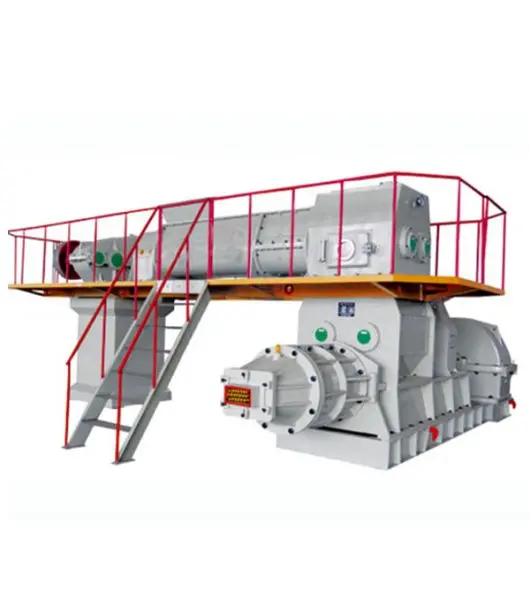

JK CLAY BRICK MAKING MACHINERY

Product Introduction: 1. Reducing raw materail moisture, lower drying cost 2. It is suitable for low, medium and high plastic raw material 3.It is suitable for one and twice stacking ,therefore simplying production chart, saving investment4.Finished product with higher density and higher strenger,not easy to be damaged while pakcing ,transporting and construction.5.Extrud

ing different solid bricks , hollow bricks and blocks.china clay brick machinery

Product Introduction:

1. Reducing raw materail moisture, lower drying cost

2. It is suitable for low, medium and high plastic raw material

3.It is suitable for one and twice stacking ,therefore simplying production chart, saving investment.

4.Finished product with higher density and higher strenger,not easy to be damaged while pakcing ,transporting and construction.

5.Extruding different solid bricks , hollow bricks and blocks.

Product Parts:

Alloy mixer blades

Alloy hollow brick mould

Alloy brick mould

Auger

Thrust bearing

Reducer

Auger adopts high chromium raw materials,the auger front part can produce 25million bricks,the auger back part can produce 45 million bricks one time. High load capacity to admit any pressure from soft to stiff extrusion condition. Reducers with parallel shafts,case hardened and ground helical gears to ensure secure,progressive transmission and quiet operation and long durability.

Extruder shaft

Liner

Extruder shaft and gear adopts heat treatment.If with proper maintenance,we can give at least 4 years guarantee for gears and shaft. 1.Hinged body.Easy opening for maintenance tasks and part replacement.

2.Highly wear resistant chrome alloy liners with a bolt-free system,preventing air leaks and making replacement operations easier.





Parameters

Technical Parameters:

 Model Capacity Up to(t/h) Extruder Power
(KW)
Vacuum degree
(MPA)
Vacuum pressure (MPA) Out size

(mm)

JKY50 32.5 160+75 ≤-0.092 4.0 5600X2100X2600
JKY55 40 185+75 ≤-0.092 4.0 5700X2200X3100
JKY60 45 250+90 ≤-0.092 4.0 5900X2300X3300
JKY70 55 315+132 ≤-0.092 4.0 6400X2400X3500
JKY90 80 450+200+18X2 ≤-0.092 4.0 7500X3100X4025
